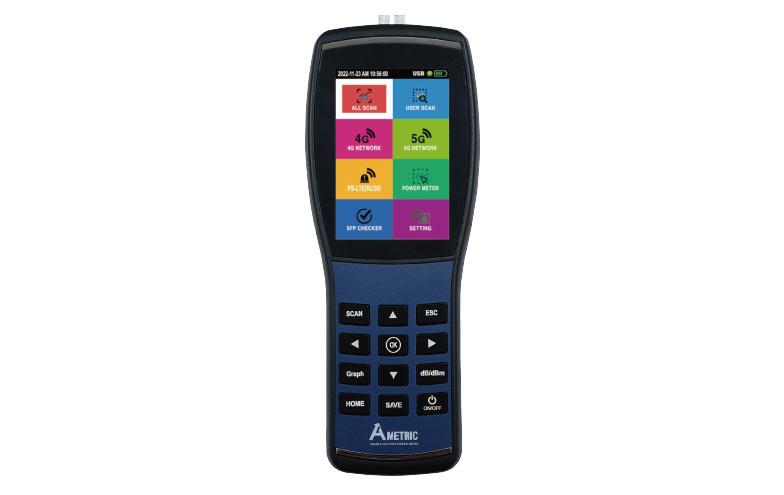

Optical Power Analyzer

Product Status- In production

Product Highlights

It is possible to measure easily by replacing the cartridge according to the use environment. Optical Power Analyzer is developed to measure exact power and is adaptable to the various Network conditions.

Specification - Standards and Specifications

Parameters	Unit	Values
Measuring Center Wavelength	Ch	ITU Channels (up to 40ch)
Measuring Range	nm	λc±0.11
General Power Meter	nm	1270 to 1610
Power Display Range	dBm	+10 to -70
Accuracy	dB	± 0.5
Measurement Unit	-	dBm/dB/mW
Operating Temperature	℃	0 to 50
Storage Temperature	℃	-10 to 70
Connector Interface	-	SC/UPC, SC/APC, LC/UPC, LC/APC
USB Interface	-	C-TYPE (Data & Recharge)
Battery Type	V	Lithium-Ion 3.7
Dimension	mm	78x200x50
LCD	”	3.5
Weight	g	477

Application - Uses

FEATURES

- Customized wavelength depends on users

- Measuring multi-wavelengths and optical power (CWDM&DWDM)

- Low cost with high performance

- Compact size with great portability

- Simple PC interface with color display

- High reliability

APPLICATIONS

- Long Haul Networks

- Metro Networks

- Data Center

- FTTH Installation
