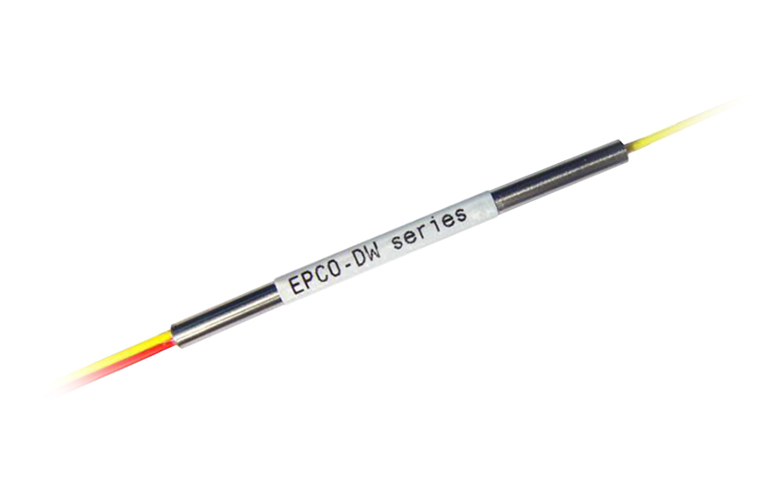

N x N Single Mode Coupler

Product Status- In production

Product Highlights

- Low Loss
- Compact Size
- Telecommunication
- CATV




Specification - Standards and Specifications

 Parameters

 Unit

 Values

 Grade



 P, A

 Center wavelength

 nm

 1310 or 1550

 Wavelength range

 nm

 +- 15

 Type

 %

 1x3

 3x3 1x4 4x4

 P grade

 Max.Insertion loss

 dB

 5.4

 6.0 7.0 7.4
 Max. Excess Loss

 dB

 0.1 0.15 0.15 0.2
 Max. PDL

 dB

 0.1 0.15 0.15 0.2
 Max. Uniformity

 dB

 0.8 1.2 1.0 1.2

 A grade

 Max.Insertion loss

 dB

 5.7 6.5 7.4 7.8
 Max. Excess Loss

 dB

 0.15 0.3 0.25 0.25
 Max.PDL

 dB

 0.15 0.2 0.2 0.3
 Max. Uniformity

 dB

 1.2 1.6 1.4 1.5

 Min.Directivity

 dB

 50

 Min.Return loss

 dB

 50

 Max.Power

 mW

 300

 Operating temperature

 °C

 -40 ~ +85

 Storage temperature

 °C

 -40 ~ +85
