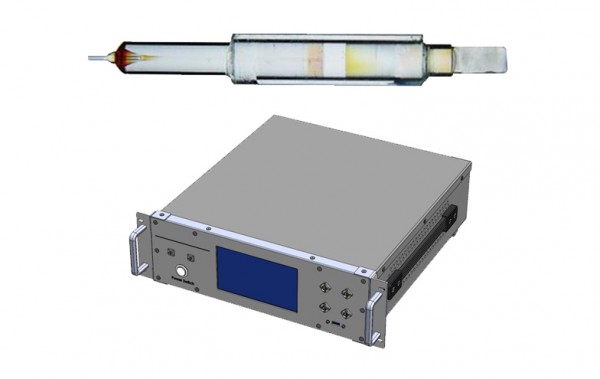

EO Cube (Probe & Controller)

Product Status- In production

Product Highlights

It is a product that measures and analyze electromagnetic waves by applying the phenomenon in which electromagnetic waves within the range of 60Hz to 10MHz band react to optical probe.

Introduction Video

Specification - Standards and Specifications

- EO Cube - Probe

Parameters	Values
Bandwidth	60 Hz ~ 10 MHz
Dynamic range	1 V/m ~ 1 MV/m
EO crysyal dimension	Area : < 1.0 x 1.0 mm2 / Thickness : 0.1 mm
Ferrule dimension	Diameter : 1.8 mm / Height : 2 mm
Optical fiber	Single mode / 10 meter / 2 mm jacket
Connector	Optical sma
Demodulation Gain	X 1,3,10,30,100,300,1000
Sensor JIG	ROHACELL® (user customized)
Sensing direction	Transverse (x,y) and Longitudinal (z)

- EO Cube - Controller

Parameters	Values
Bandwidth	60 Hz ~ 10 MHz
Demodulation method	Direct modulation
Size	19 inch 2U
Display	7 inch touch screen
Sensor channel	2 independent
Interface	Internal PC with windows 11
Panel Connector	Optical sma
Demodulation Gain	X 1,3,10,30,100,300,1000
Output port	2 independent
Sensor calibration	Software provided

* East Photonics provides a measurement service using the EO-Sensor. To learn more, send us an e-mail to the address below.

Korea : epds@epbos.com | Abroad : epos@epbos.com
